A 100% stacked bar chart shows composition horizontally — each bar is scaled to 100% so the segments read as shares of the total, making the mix easy to compare across categories even when the totals differ. It is the horizontal form of the 100% stacked column; where category size also matters, use a Mekko instead. Ampler Charts builds it natively in PowerPoint.
Quick answer: Click Ampler Charts and select 100% Stacked Bar, drag the chart to size, then enter your data — every bar is scaled to 100% so the segments show each series as a share.
How to create it

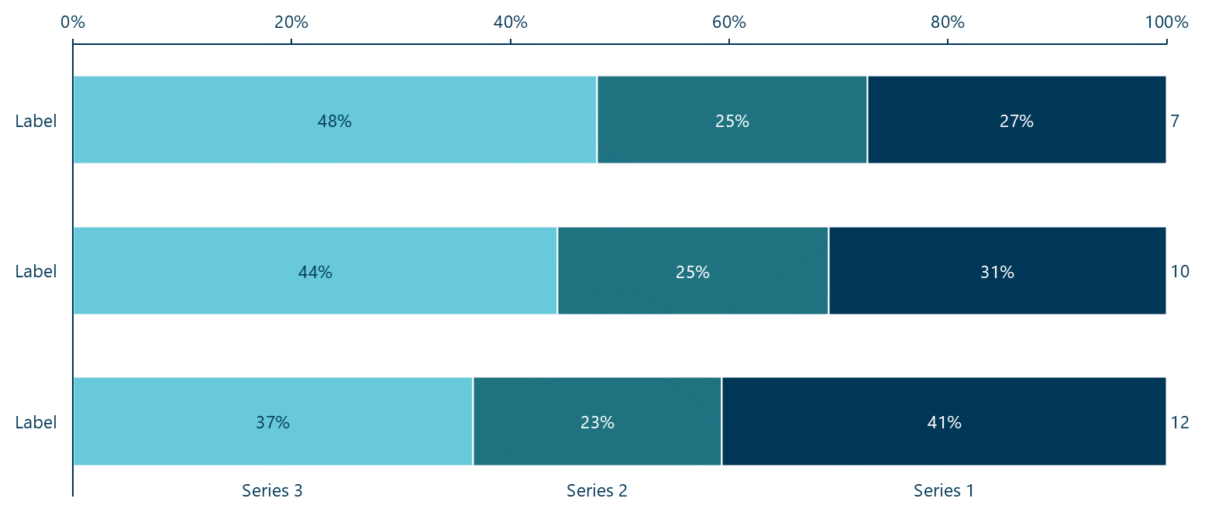

A 100% stacked bar chart: each bar is scaled to 100% so segments read as shares.
- Click Ampler Charts in the ribbon and select 100% Stacked Bar from the chart menu.
- Left-click and drag the chart to the size you want — or hold Ctrl to place it in a pre-defined position.
- Enter your data in the data sheet: each bar is normalised to 100%, so the segments show each series as a share of the total.
When to use it
Use a 100% stacked bar when only the composition matters and the categories have long labels or are numerous. If the total also matters, use a stacked bar; if the categories differ in size and that size is part of the story, use a Mekko; for a short time series, the 100% stacked column reads more naturally.
How consultants use it
For a mix comparison across long-labelled or numerous categories, the 100% stacked bar is the tool. A few practices apply:
- Normalise to compare mix: scaling every bar to 100% lets you compare composition across categories whose totals differ
- Label as shares, drop the slivers: show the segment percentages and suppress anything under about 5% so the bars stay readable
- Keep the totals in reach: a 100% view hides absolute size, so add the totals in a callout when size still matters
A 100% stacked bar makes a clean mix argument while handling long labels and many categories.
Tips & best practices
- Label the segments as percentages and hide slivers under about 5%.
- Order the bars consistently — by a segment share or by name — so they compare cleanly.
- Use a Mekko when the categories differ in size and that size matters.
What you can add to this chart
Decorators and elements you can layer onto a 100% stacked bar chart in Ampler Charts:
- Add series CAGRs
- Add total and level differences
- Add, position and format a value line
- Add connectors between series
- Add series shares
- Add a percent indicator
Availability
Part of Ampler Charts, included in Ampler for PowerPoint and the Ampler Suite, on Windows desktop PowerPoint.
Frequently asked questions
What is a 100% stacked bar chart?
A 100% stacked bar chart scales every horizontal bar to the same length (100%) so the segments show each series as a share of the category total rather than an absolute value.
How do you make a 100% stacked bar chart in PowerPoint?
In Ampler Charts, click Ampler Charts, select 100% Stacked Bar, drag it to size, then enter your data — each bar is normalised to 100%.
What’s the difference between a 100% stacked bar and a 100% stacked column?
They show the same thing; the bar is horizontal, which suits long labels and many categories, while the column is vertical and suits time series.
100% stacked bar or Mekko — which should I use?
Use a 100% stacked bar when the categories are comparable in size and you only need to compare the mix; use a Mekko when the categories differ in size and that size matters.
